Maisheng Cattle Slaughter Line for Slaughterhouse Halal for Slaughter Equipment

Our experts design and manufacture complete cattle slaughter lines with a Capacity from 5 to 100 heads per hour or renovate old slaughter lines by installing new components.

Main Features:

1. Advanced design and technology;

2. High quality guarantee;

3. Long service life;

4. High automatic degree;

5. Easy operation and maintenance;

6. Labor and energy saving;

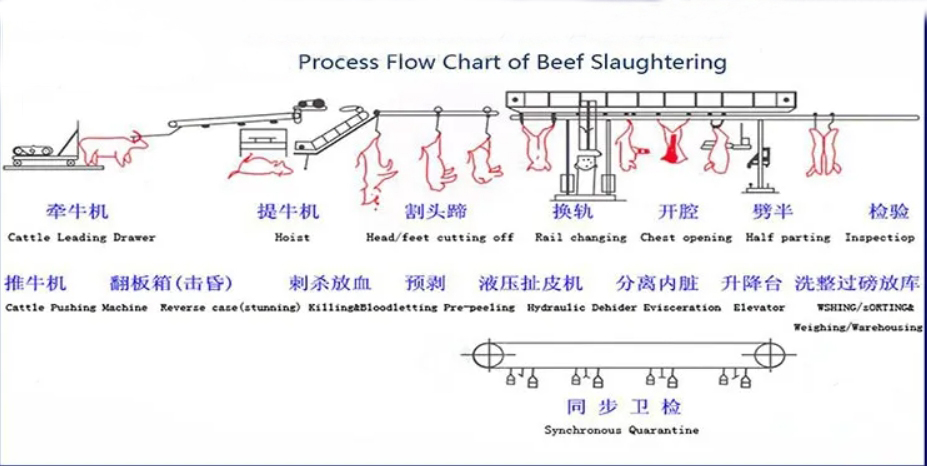

Processing step：

Live Cattle in Slaughtering Shed →feed Deprivation for 24 Hours →weighing → Shower → Stun the Cattle with Head Fixed → Lift by Tying One Hind Leg → Bloodletting → Blood Draining for 5-6 Mins → Electrical Stimulation → Cut Forelegs and Horns / Head Pre-Dehiding → Seal the Anus →cut Hind Leg / Change Rail → Stretch Legs After Entering the Carcass Automatic Processing Conveyor → Pre-Stripping →machinery Mechanical Peeling→cattle Held in Temporary Storage Room→ Cut the Head / Cleaning → Second Time Leg Stretching / Tie Esophagus →cut Apart Chest → Take White Viscera→qualified White Visceral into the Processing Room→ Stomach Residue Was Transported to a Waste Storage Room Through a Pneumatic Conveying System→ Take Red Viscera →qualified Red Viscera and Cattle Head Put in Storage After Cleaning→ Split the Carcass in Half→inspection → Carcass Trimming→carcass, Red/White Viscera, Head Processed Under High Temperature→carcass Weighing → Washing →acid Discharge (0-4 ºc) → Quarter the Carcass→remove the Bone → Split → Sorting, Weighing, Packing → Freezing → Packing →refrigeration → for Sale

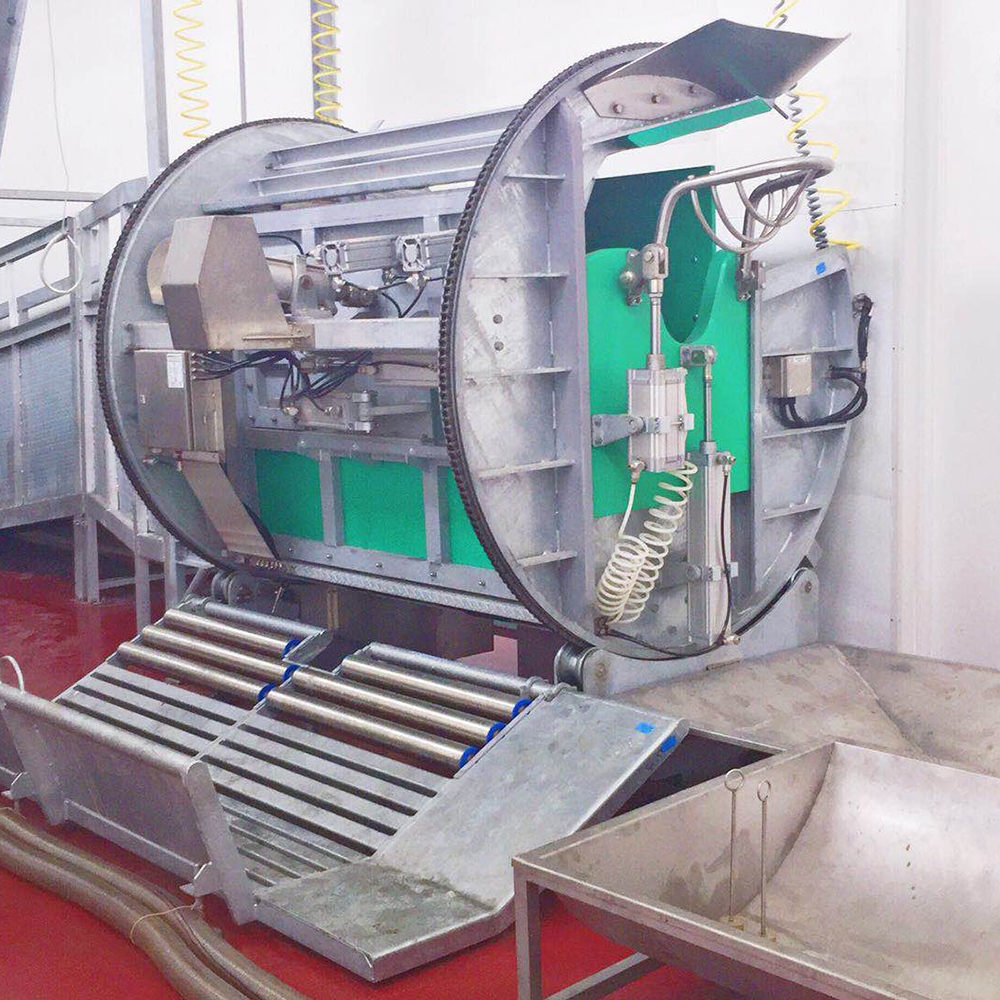

Cattle rotary ritual killing trap is used for cattle reversing and restraining in HALAL slaughtering procedure, it can also be used for cattle killing after stunning. Rotary ritual killing trap is the most safe method in cattle slaughtering, figuring easy operation and fast speed.

Cattle Dehairing Machine: Used to remove the cattle skin downwards. Hydraulic-drive, stable pulling performance. Complete skin ensured less meat loss—easy operation and maintenance. Hydraulic system included.

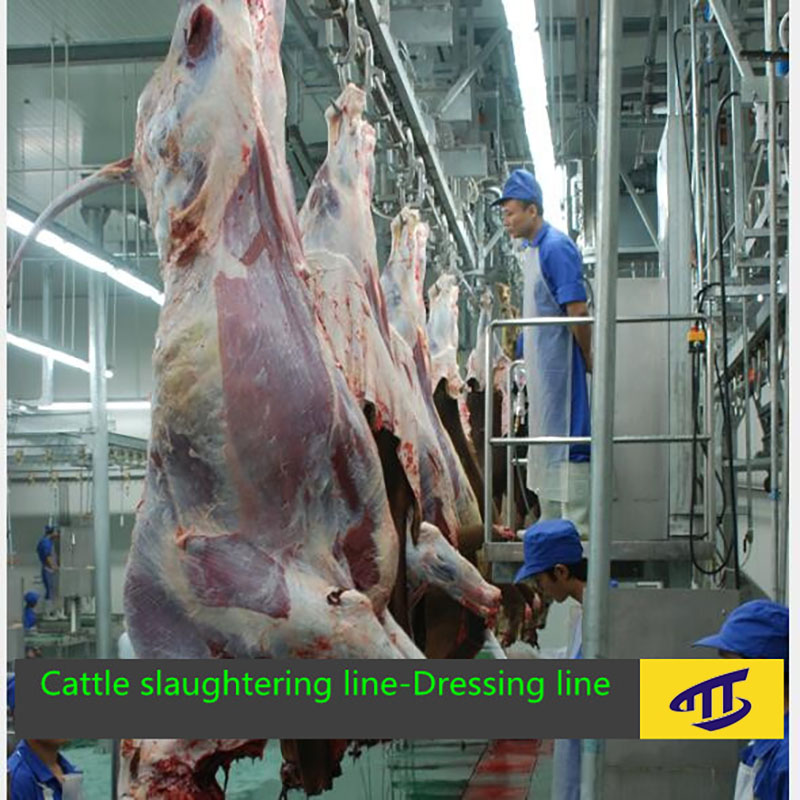

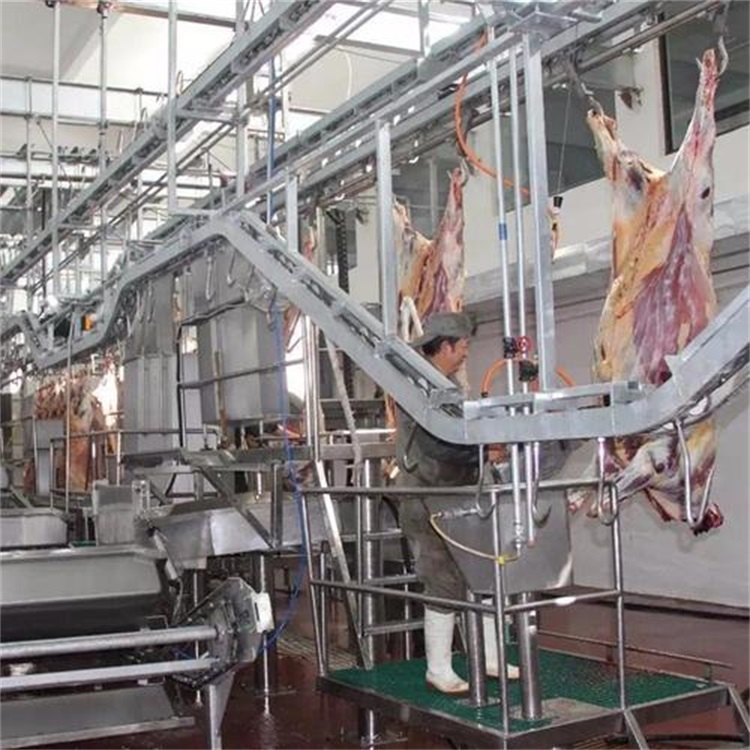

Carcass Dressing Line: Used to convey the cattle carcass to each work position to complete different processes. Covering from cattle re-hanging to trimming process; Step type conveyor with adjustable speed; High degree of automation, labor-saving.

Synchronous Inspection System: This system can synchronously convey the carcass and white and red viscera for inspection.   The special design greatly reduces labor intensity. The hooks and trays can be automatically cleaned and disinfected after use; Three types suitable for different slaughter capacities.

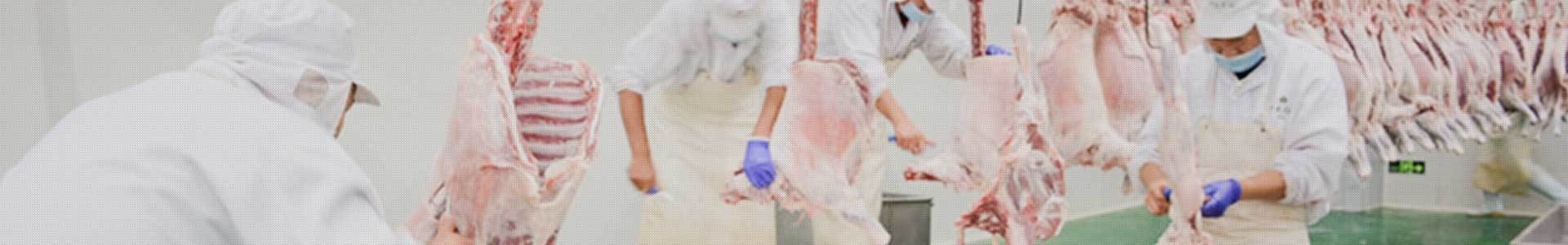

Meat Cutting and Deboning Conveyor Line: Used to convey parts of meat to each station and easy for staff to process. Ergonomically designed cutting line frame, durable and practical.  Belt adopts food-grade material, in line with international hygiene standards.

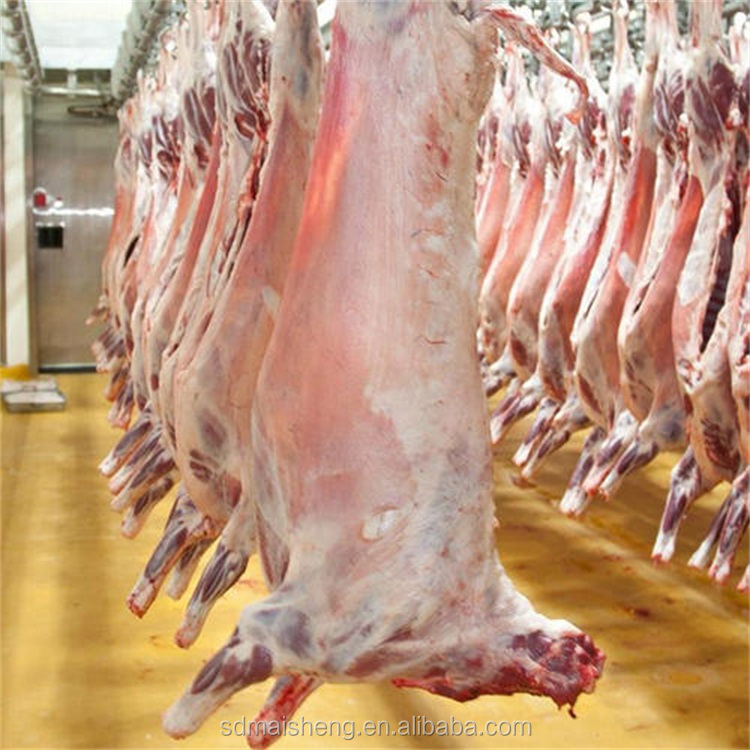

Cold Storage Refrigeration Equipment: Used for carcass acid discharging and storing finished products.

Company Information:

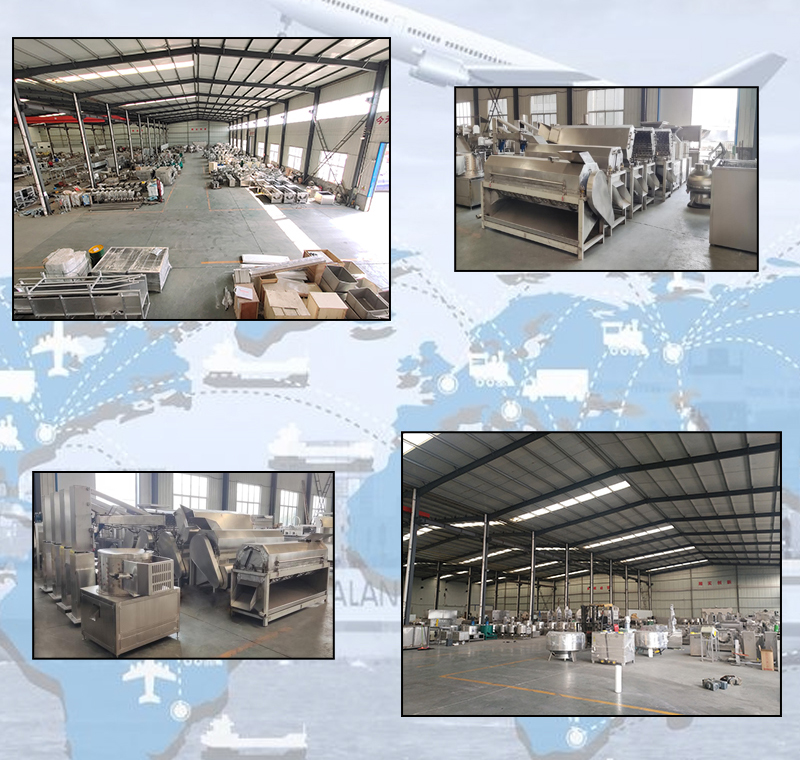

Professional Manufacturer of Slaughter Equipment

Shandong Maisheng Machinery Technology Co., Ltd.is a professional meatprocessing equipment manufacturer. The company has more than 20 years of equipment research and development, production, sales and after-sales service experience,it mainly manufactures slaughtering and processing equipment fotpigs,cattle,sheep and other livestock, and can provide customers with overalsolutions for slaughtering and processing proiects. The company's productshave the advantages of easy operation, stable performance, adaptability tovarious environments, and long life. Our products are sold to many countriesaround the world, for customers to solve the slaughter line design, production, instalation problems.

Why Choose Us

Strong company
Our company has many years of equipment development, production, sales and service in one development process, accumulated rich manufacturing experience, and created a group of engineering and technical personnel involved in manufacturing and experienced front-line technical personnel.
Simple operation
It has many advantages such as simple operation, stable performance, strong environmental adaptability and long working life.
Quality assurance
We try our best to make you "satisfied, assured, and honest" with our brand-new management concept, advanced
production equipment and excellent pre-sale and after-sale service. We are willing to sincerely cooperate with friends at home and abroad and work together to create a brilliant future!
Rich technical experience
The technical innovation and equipment transformation of our factory are changing with each passing day, and the production scale is gradually expanding. We have formed a large multi-functional comprehensive enterprise that integrating R &D, production, manufacturing, maintenance and processing of various products.

Product Packaging

FAQ

1. Q: Can the logo or company name to be printed on the products or package?

A: Sure. The customer's logo or company name can be printed on products by stamping, printing, embossing, coating, or sticker.

2. Q: Can I mix different models in one container?

A: Yes, different models can be mixed in one container, but the quantity of each model should be at least MOQ.

3. Q: How does your factory do regarding quality control?

A: Quality is a priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.

4. Q: What are your warranty terms?

A: We offer different warranty times for other products. Please get in touch with us for detailed warranty terms.

5. Q: Will you deliver the right goods as ordered?

A: Yes, we will. The core of our company culture is honesty and credit.

Contact Us

If you want to know more about our product, please get in touch with us.
